3-cestný 7" aktívný monitor viac

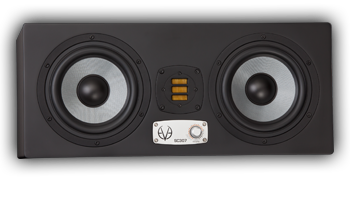

SC307 - 3-cestný 7" aktívny monitor
SC307 je druhý z rady 3-cestných monitorov EVE Audio. Je vhodný pre near-field a aj mid-field odposluch. V surround rozmiestnení je excelentný aj ako Center monitor.
3 nezávislé zosilňovače účinne produkujú dynamický zvuk s nízkym šumom a skreslením.

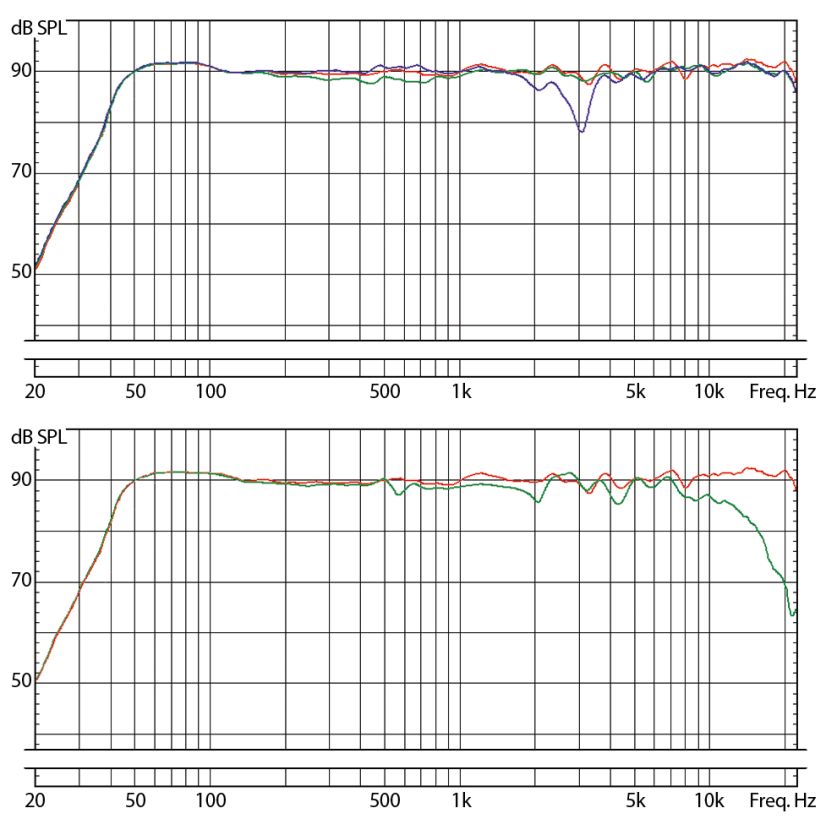

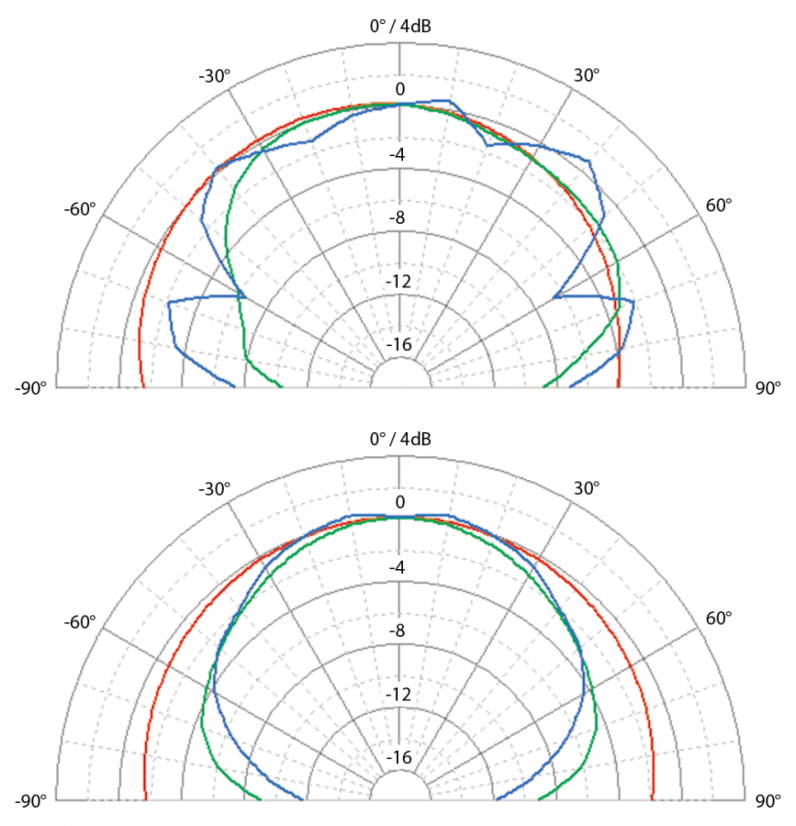

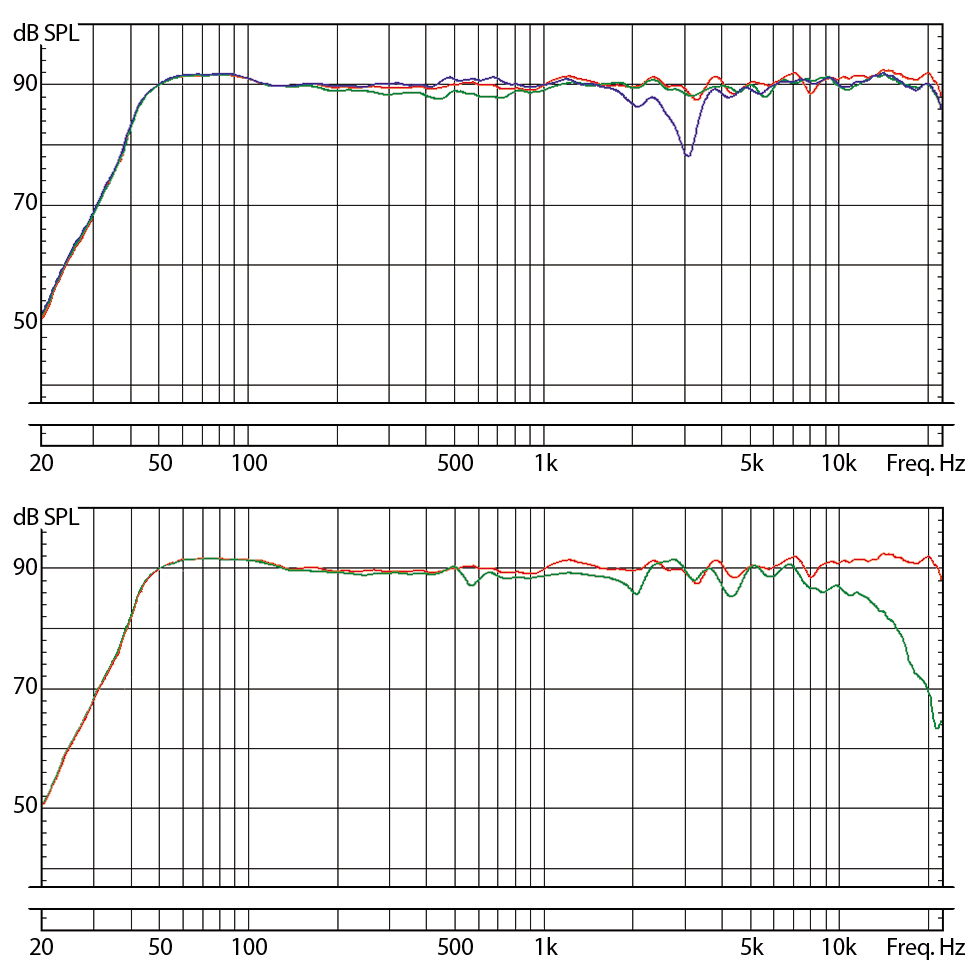

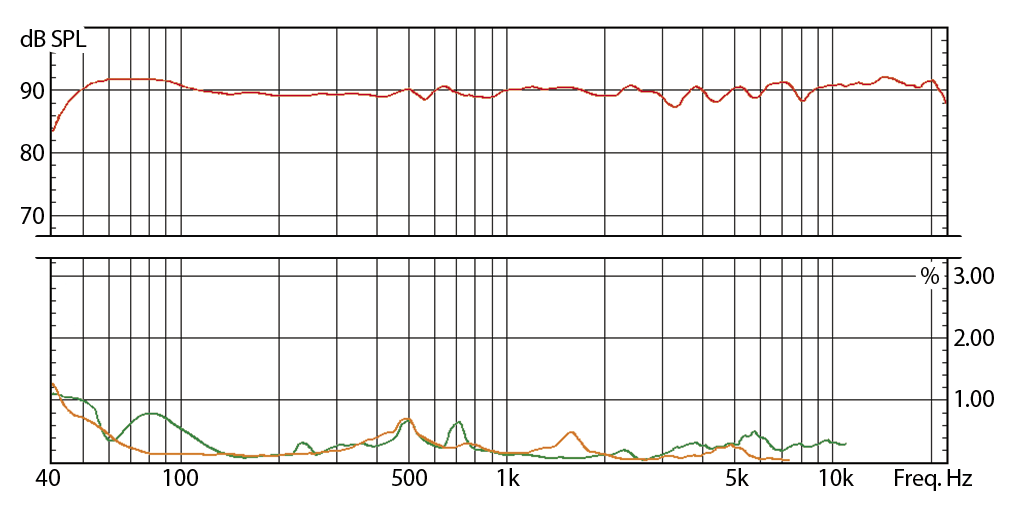

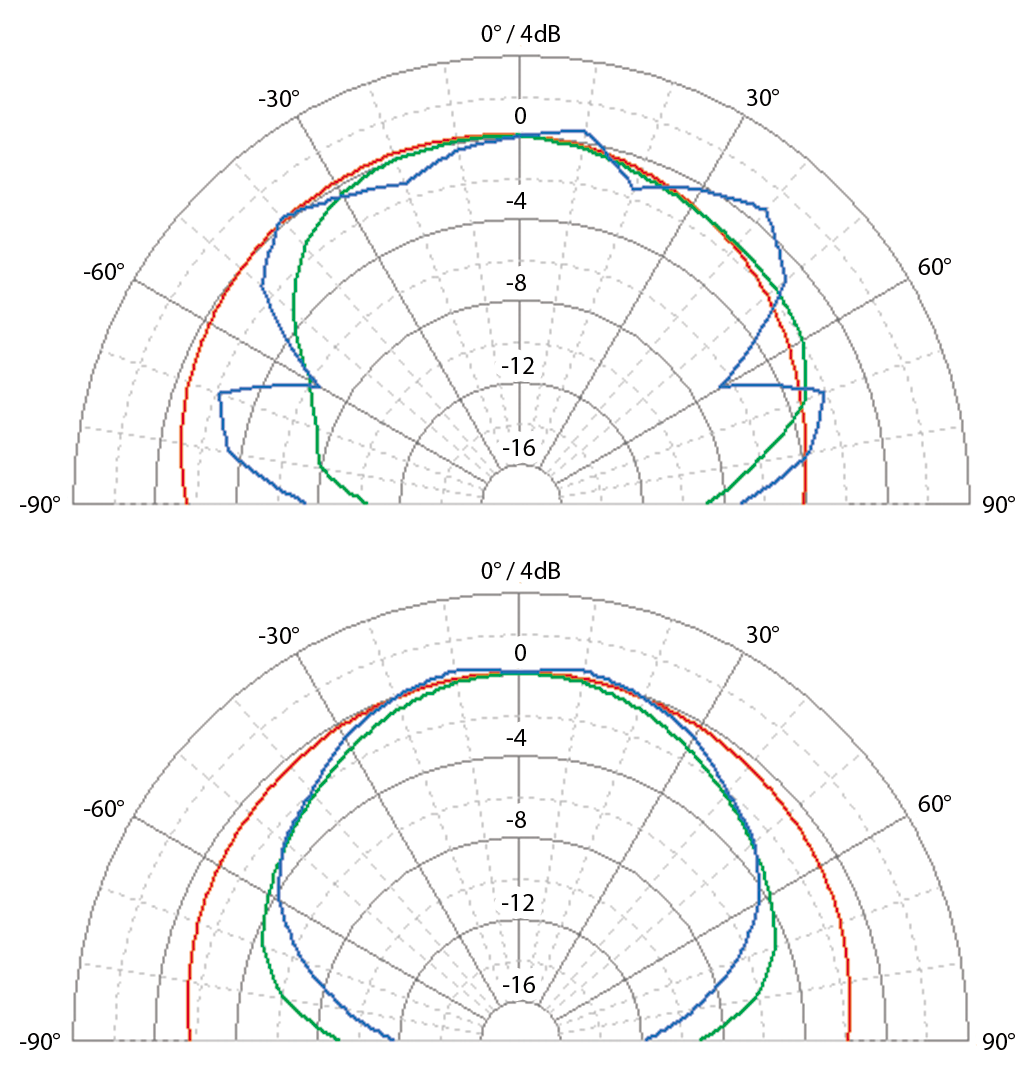

| Polar pattern | Frekvenčná odozva | Skreslenie |
 |  |  |
| Product | SC307 |
| Description | 3-way System |
| Dimensions (WxHxD) [mm] | 500 x 215 x 310 |
| Dimensions (WxHxD) ["] | 19.69 x 8.46 x 12.2 |
| Free-field frequency range (-3dB) | 40Hz - 21kHz |
| Tweeter | AMT RS2 |
| Mid-Woofer | 165mm/6.5" |
| Woofer | 165mm/6.5" |
| Cross-over frequency | 300Hz/2800Hz |
| Maximum SPL @ 1m | 114dB |
| Number of amplifiers | 3 |
| Output power (woofer) | 2 x 100W |
| Output power (tweeter) | 50W |
| Protection limiter | √ |
| Settings | |
| Volume | -inf. - +6dB |
| High-shelf filter (-5dB - +3dB) | > 3kHz |
| Desk filter boost (0dB - +3dB) | 80Hz |
| Desk filter cut (-5dB - 0dB) | 160Hz |
| Low-shelf filter (-5dB - +3dB) | < 300Hz |
| LED brightness setting | √ |
| Level-lock dip switch | √ |
| Filter-lock dip switch | √ |
| Woofer-change dip switch | √ |
| Connectors | |
| XLR in (impedance) | (10k) |
| RCA in (impedance) | (10k) |
| Power consumption | |
| Standby | < 1W |
| Full output | 120VA |
| Misc. | |
| Weight kg/lb. | 12.4 / 27.3 |
