3" Master/Slave systém viac
SC203 - 3" Master/Slave systém
Ak hľadáte dobrý zvuk a máte málo miesta, tak SC203 je dobrá voľba. SC203 je výborné riešenie pre yvuk na stole s malým priestorom pre profesionálov. Každý odposluch má FlexiPad - naklonený oranžový pogumovaný podstavec, ktorý akusticky oddeľuje reproduktor od stola a má možnosti náklonu presne na 0 - 7.5 - 15 stupňov.
V balení je aj adaptér pre montáž na stojan s 3/8 závitom aj s potrebnými šróbami.

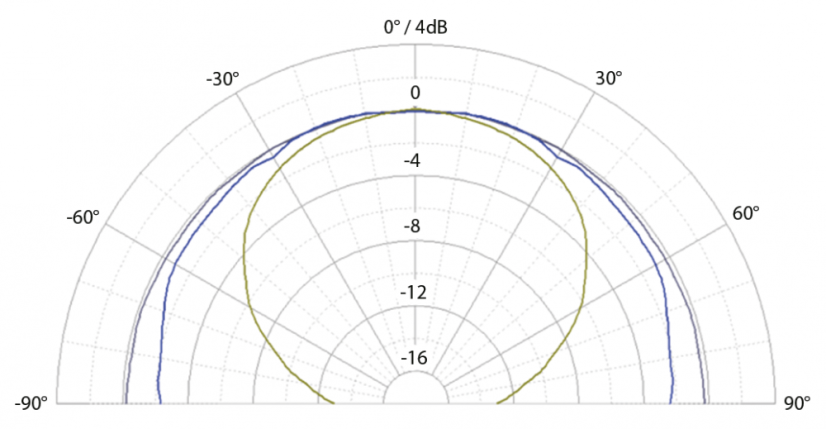

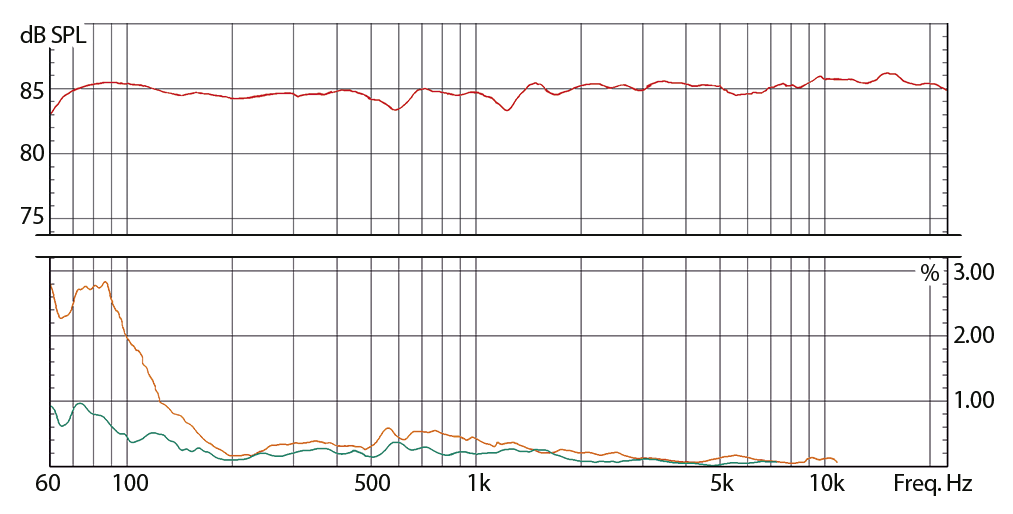

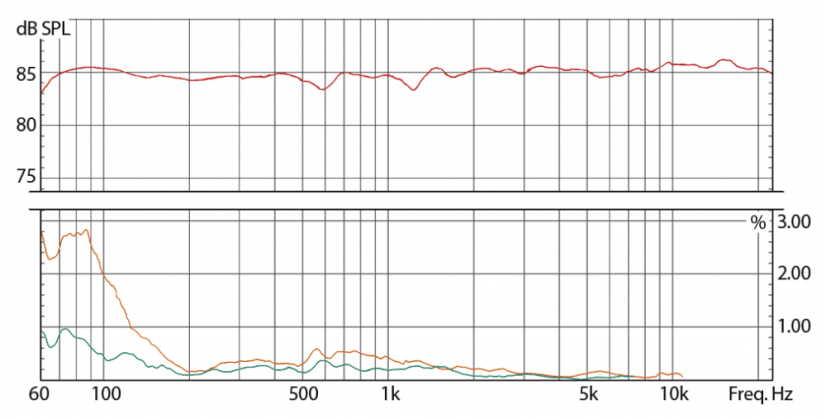

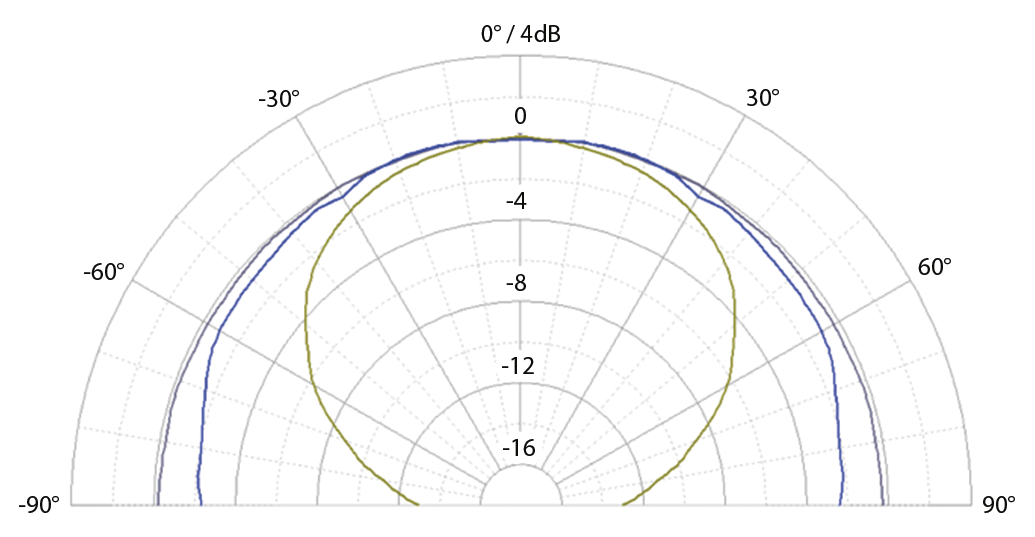

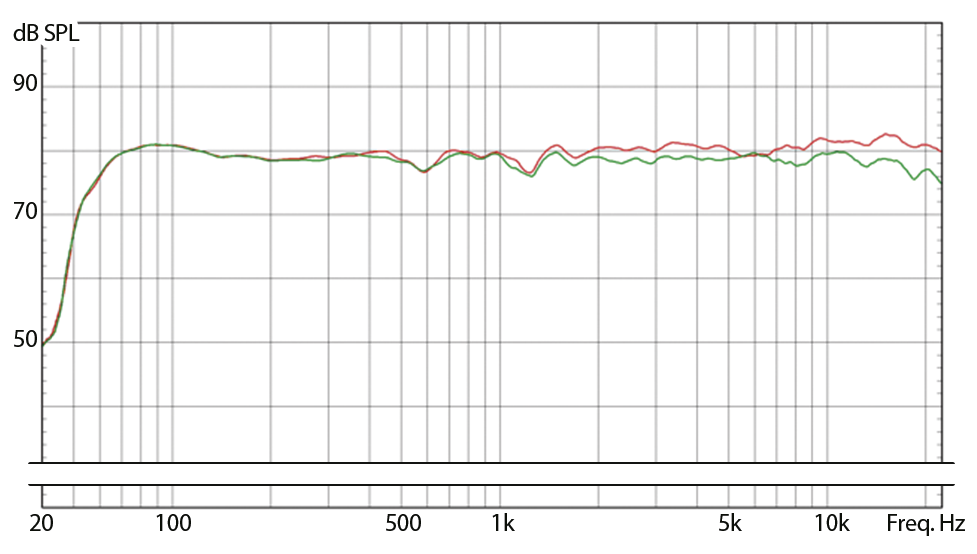

| Polar pattern | Frekvenčná odozva | Skreslenie |
 |  |  |
| Product | SC203 |
| Description | 2-way master/slave system |
| Dimensions (WxHxD) [mm] | 116 x 190 x 134 |
| Dimensions (WxHxD) ["] | 4.56 x 7.48 x 5.27 |
| Free-field frequency range (-3dB) | 62Hz - 21kHz |
| Tweeter | µA.M.T. |
| Mid-Woofer | 75mm/3" |
| Cross-over frequency | 4800Hz |
| Maximum SPL @ 1m | 94dB |
| Number of amplifiers | 4 |
| Output power (woofer) | 30W |
| Output power (tweeter) | 30W |
| Protection limiter | √ |
| Settings | |
| Volume | -inf. - +6dB |
| High-shelf filter (-5dB - +3dB) | > 3kHz |
| Position filter | flat, desk, console |
| Low-shelf filter (-5dB - +3dB) | < 300Hz |
| LED brightness setting | √ |
| Input select | √ |
| Input level dip switch | +8dBu/+22dBu |
| Standby dip switch | locks cont. mode |
| Satellite filter dip switch | 80Hz high-pass filter |
| Connectors | |
| RCA in (impedance) | left-right (10k) |
| Digital optical in | TOSLink |
| USB in | Type B |
| RCA subwoofer out | √ |
| Power consumption | |
| Standby | < 1W |
| Full output | 110VA |
| Misc. | |
| Backmounting thread inserts | √ |
| Mic stand thread inserts | √ |
| Weight kg/lb. | Master: 1.9 / 4.19 Slave: 1.7 / 3.75 FlexiPad: 0.19 / 0.86 |
