AV integrované konferenčné riešenie ponúka dokonalý obraz vďaka RGB10X PTZ kamere, pokročilé algoritmy spracovania ISP, špičkový výkon a bohaté možnosti rozhrania. viac
Vlastnosti:
- Vynikajúca 10x zoom kamera s vysokým rozlíšením až 1920 x 1080
- Nízky šum a vysoké SNR
- Špičková technológia automatického zaostrovania
- Podpora kompresie videa MJPG /H.265 /H.264
- Snímanie zvuku s podporou bluetooth hands-free volania
- 4 vstavané mikrofóny so smerovou charakteristikou a širokým frekvenčným rozsahom
- Vstavaný IR prijímač
- Funkčné tlačidlá na prednom paneli
- Kodér podporuje USB plug and play
- Podpora viacerých webových konferenčných softvérov
Technické údaje:

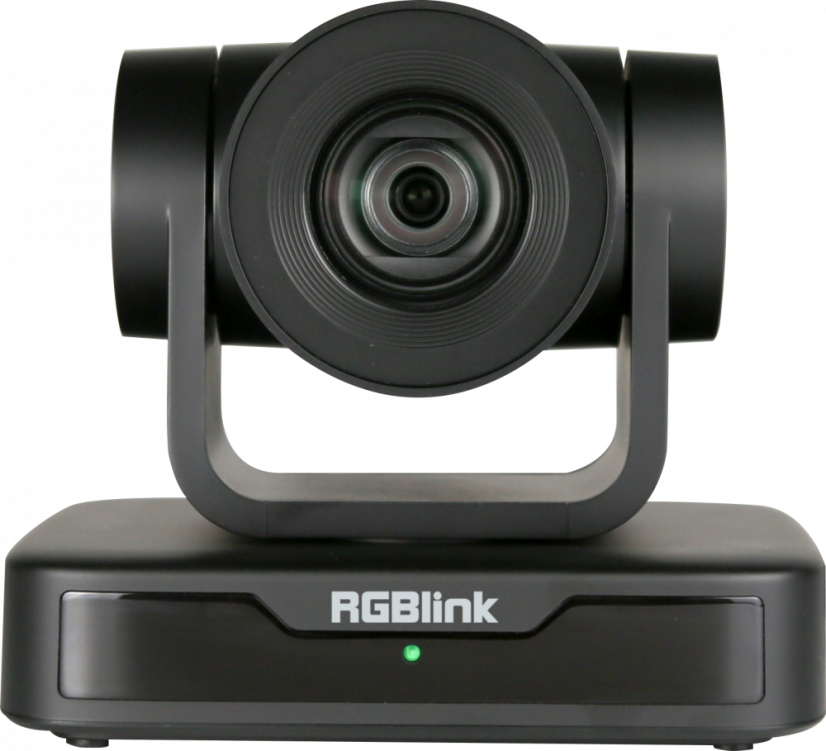

| Camera | ||||||||
| Performance | Camera | Optical Zoom | 10x f=4.34mm～41.66mm | |||||
| View Angle | 8.8°～ 68.8° | |||||||
| AV | F1.85 – F2.43 | |||||||
| Digital Zoom | 10X | |||||||
| Minimum Illumination | 0.5 lux (F1.8,AGC ON) | |||||||
| DNR | 2D & 3D DNR | |||||||
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/ | |||||||
| 6000K/6500K/7000K | ||||||||
| Focus/Aperture/Electronic Shutter | Auto/Manual | |||||||
| BLC | ON/OFF | |||||||
| WDR | OFF/Dynamic Level Adjustment | |||||||
| Video Adjustment |
Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma
curve
|
|||||||
| SNR | >55dB | |||||||
| Effective Pixels | 2.07m,16:9 | |||||||
|
Pan-and-Tilt
Parameter
|
Pan/Tilt Movement | -170°～+170°/-30°～+90° | ||||||
| Pan/Tilt Control Speed | 0.1～60°/s;0.1～30°/s | |||||||
| Preset Speed/Quantity | Pan:60°/s, Tilt:30°/s | |||||||
| Video Connector | 1×DIN6 | |||||||
| Video Format | 320×176P@30fps/25fps | 640×360P@30fps/25fps | 800×448P@30fps/25fps | 960×540P@30fps/25fps | |||||||
| 1024×576P@30fps/25fps | 1280×720P@30fps/25fps | 1920×1080P@30 fps/25fps | ||||||||
| Physical | Dimension | Device Dimension | 156.8mm×112.6mm×139.1mm | |||||

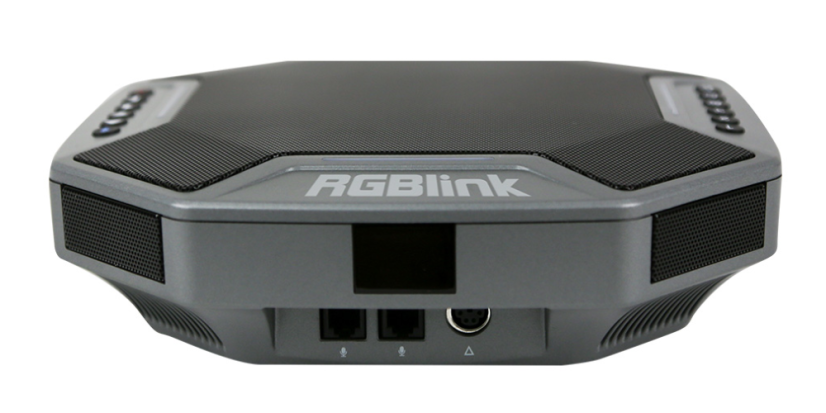

| Sound Pick-up | ||||||||
| Connetors | Video | 1× DIN6 | ||||||
| Microphone | 2 × USB | |||||||
| Performance | Voice | Acoustic Echo Cancellation(AEC) | ＞65dB | |||||
| Echo cancellation Range | ≥ 400ms | |||||||
| Noise Compression(NC) | ＜25dB | |||||||
| EMI | ||||||||
| Automatic Gain Control(AGC) | ||||||||
| Audio | Microphone Frequency Response | 100Hz-22KHz | ||||||
| Horn Frequency Response | 100Hz-22KHz | |||||||
| Horn Volume | 95dB(Max) | |||||||
| Microphone Pick-up Diameter | Angle:360°; Diameter:6m | |||||||
| Bluetooth | Yes | |||||||
| IR Receiver | Angle:360°; Distance:10m | |||||||
| keys | Up,down,left,right,answer,hand up ,bluetooth,etc | |||||||
| Physical | Dimension | 200mm×200mm×55.9mm | ||||||

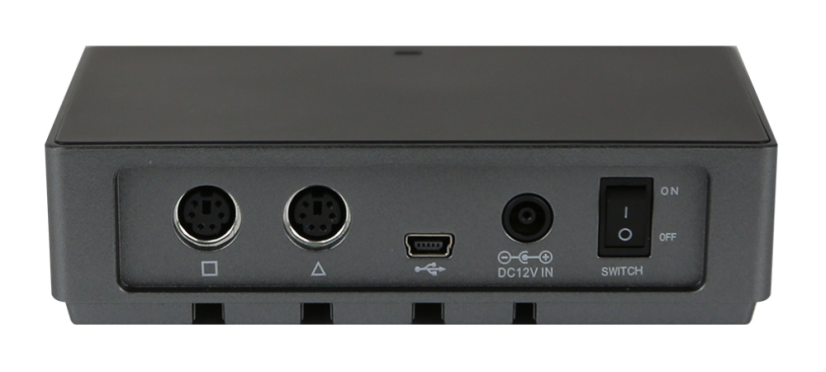

| Concentrator | ||||||||
| Connectors | Video | 2 × DIN 6 | ||||||
| Communication | 1 × mini USB | |||||||
| Power | 1 × EC3800 power jack(DC 12V) | |||||||
| performance | Operating System | Windows,Android,iOS,Linux,etc | ||||||
| Software | WeChat,Zoom,Lynch,Vidyo,etc | |||||||
| Physical | Dimension | 120mm×74mm×34.5mm | ||||||
