Blackmagic Design Smart Videohub 12G 40x40
40x40 Ultra HD router pre rôzne formáty so vstavaným kontrol panelom a monitoringom. S 12G-SDI pripojením môžete pripojiť a routovať akúkoľvek kombináciu SD, HD a Ultra HD videa, všetko na jednom routri a v rovnakom čase. viac

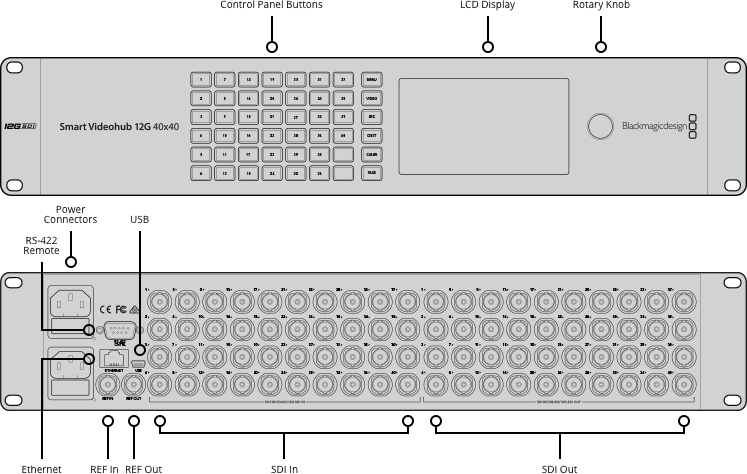

PRIPOJENIE:
SDI Video Input
40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.
SDI Video Output
40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.
Reference Input
Black burst and Tri-level sync for SD, HD and 4K.
Reference Output
Reference terminating loop output.
Muti Rate Support
Auto detection of SD, HD or 12G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates
USB or Ethernet.
Front Panel Router Control
40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. RS-422.
Router Configuration
Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 12G-SDI video.
VIDEO ŠTANDARDY:
SD Format Support
625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p60.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, SMPTE 425M Level A, ITU-R BT.656 and ITU-R BT.601
SDI Video rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
10bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
