Miniatúrny prevodník SDI (prepínateľný mezi SD, HD a 3G-SDI) na HDMI s automatickým prepínaním na záložný vstup v prípade výpadku hlavného SDI vstupu. viac

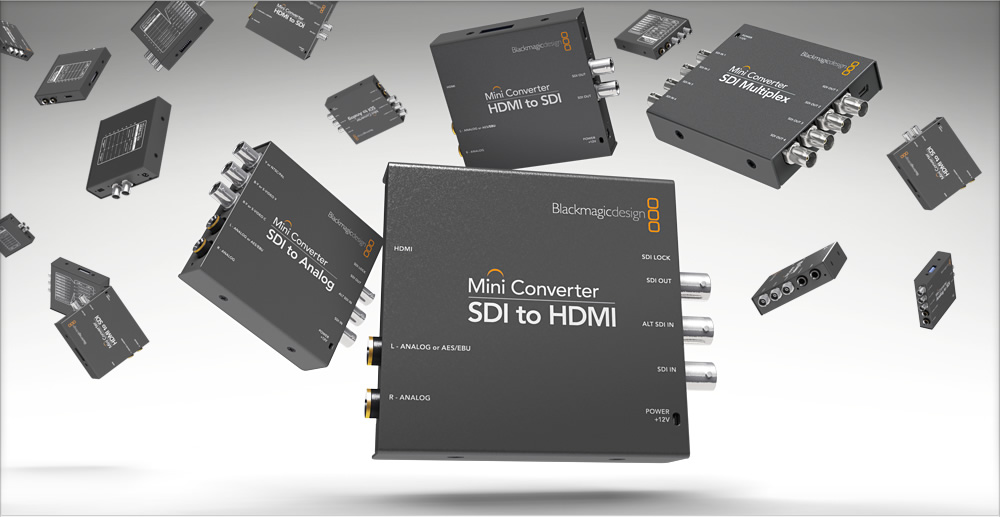

Mini Converter - SDI to HDMI
Konvertuje z SDI na HDMI video s embedovaným HDMI audiom a balanced AES/EBU alebo analóg audio výstupom. Vďaka tomu je možné používať veľké televízory a projektory ako náhľadové monitory. Konvertor umožňuje v prípde neprítomnosti hlavného SDI vstupu prepnúť na záložný pre potreby nepretržitého nahľadu bez výpadkov.
Vlastnosti:
- Jednoduché na ovládanie
- Kvalitné kovové prevedenie
- Miniatúrne rozmery
- Implementované najnovšie technológie
- Vysokokvalitné spracovávanie obrazu

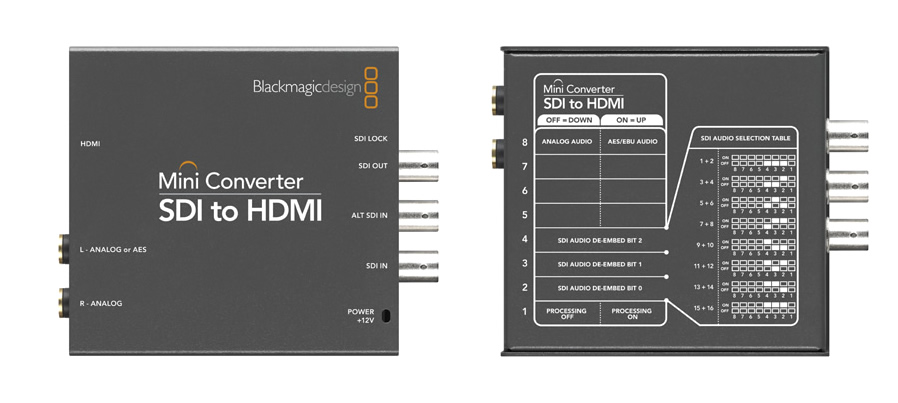

Pohľady:

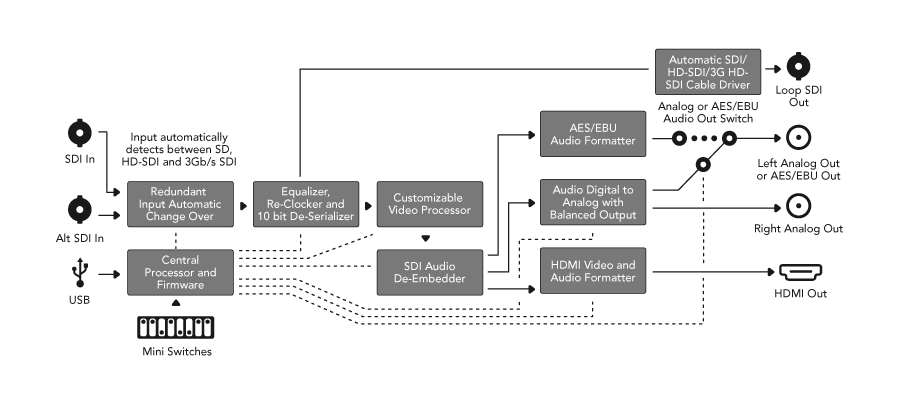

Schéma zapojenia:
Connections |
|
SDI Video Input |
Switchable between SD, HD and 3 Gb/s SDI. |
SDI Video Output |
Automatically matches the SD, HD and 3 Gb/s SDI video input. |
Analog Video |
None |
Analog Audio |
2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
AES/EBU Digital Audio |
2 channels of professional balanced digital with standard 1/4 inch jack connections. |
HDMI |
HDMI type A out |
SDI Redundant Input |
Automatically switches over if main SDI input is lost. |
Multi Rate Support |
Auto detection of HD or standard definition SDI inputs. |
Updates and Configuration |
Via USB 2.0 high speed. (480 Mb/s) |
Reclocking |
Yes |
Standards |
|
SDI Compliance |
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601. |
SDI Video Rates |
SDI video connections are switchable between standard definition and high definition. |
SDI Video Sampling |
4:2:2 |
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
SDI Color Precision |
4:2:2 |
SDI Color Space |
YUV |
SDI Auto Switching |
Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI. |
SDI Format Support |
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. |
HDMI Format Support |
625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60. |
HDMI Color Space |
YUV |
HDMI Color Precision |
4:2:2 |
Extras |
|
Software Control |
Mac OS X™ and Windows™ software upgrade via USB. |
Internal Software Upgrade |
Via included updater application. |
Settings Control |
Mini Switches or USB software. |
Power Supply |
+12V universal power supply included with international socket adapters for all countries. Cable tie point. |
Power Consumption |
5.76 Watts |
Operational Voltage Range |
12V |
