Blackmagic Design Mini Converter - SDI to Analog
Miniatúrny prevodník SDI (prepínanie medzi SD, HD a 3G-SDI) na Analog Component, NTSC, PAL a S-Video. viac
Mini Converter - SDI to Analog
Obsahuje všetko čo je potrebné na konvertovanie z SDI na analógový HD/SD komponentný, NTSC a PAL video výstup s balanced AES/EBU a analog audio výstupom. Už je jednoduché pripojiť Betacam SP, VHS a analógový video monitor. Súčasťou je aj down konvertor na pripojenie HD-SDI videa k SD zariadeniam.
Vlastnosti:
- Jednoduché na ovládanie
- Kvalitné kovové prevedenie
- Miniatúrne rozmery
- Implementované najnovšie technológie
- Vysokokvalitné spracovávanie obrazu

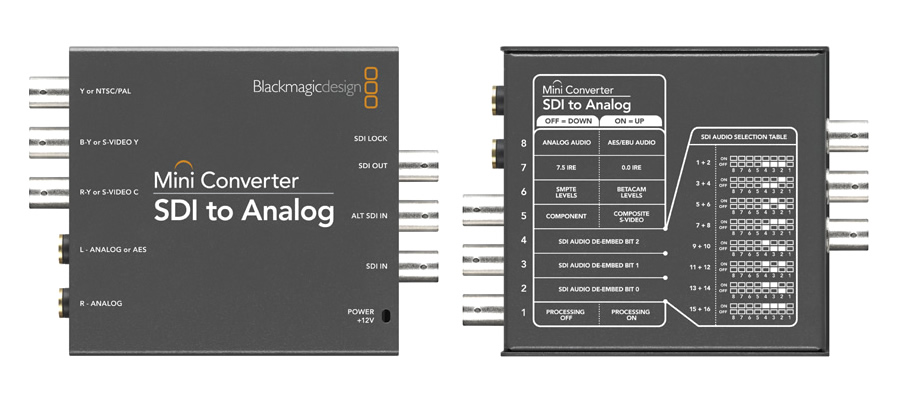

Pohľady:

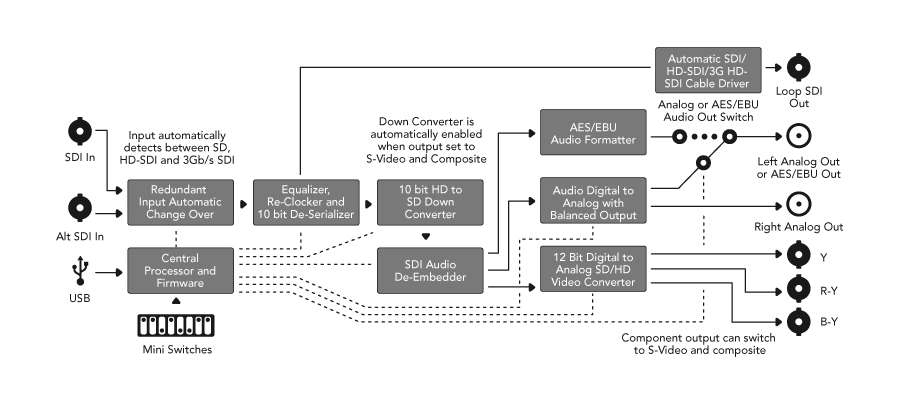

Schéma zapojenia:
|
Connections |
|
|
SDI Video Input |
Switchable between SD, HD and 3 Gb/s SDI. |
|
SDI Video Output |
Automatically matches the SD, HD and 3 Gb/s SDI video input. |
|
Analog Video |
Component, NTSC, PAL and S-Video from SD-SDI input. Component HD from HD-SDI input. |
|
Analog Audio |
2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
|
AES/EBU Digital Audio |
2 channels of professional balanced digital with standard 1/4 inch jack connections. |
|
SDI Redundant Input |
Automatically switches over if main SDI input is lost. |
|
Multi Rate Support |
Auto detection of HD or standard definition SDI inputs. |
|
Updates and Configuration |
Via USB 2.0 high speed. (480 Mb/s) |
|
Reclocking |
Yes |
|
Standards |
|
|
SDI Compliance |
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601. |
|
SDI Video Rates |
SDI video connections are switchable between standard definition and high definition. |
|
SDI Video Sampling |
4:2:2 |
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
|
SDI Color Precision |
4:2:2 |
|
SDI Color Space |
YUV |
|
SDI Auto Switching |
Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI. |
|
SDI Format Support |
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. |
|
Analog Format Support |
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. |
|
Analog Color Space |
YUV |
|
Analog Color Precision |
4:2:2 |
|
Extras |
|
|
Software Control |
Mac OS X™ and Windows™ software upgrade via USB. |
|
Internal Software Upgrade |
Via included updater application. |
|
Settings Control |
Mini Switches or USB software. |
|
Format Conversion |
HD down conversion |
|
Power Supply |
+12V universal power supply included with international socket adapters for all countries. Cable tie point. |
|
Power Consumption |
8.04 Watts |
|
Operational Voltage Range |
12V |
