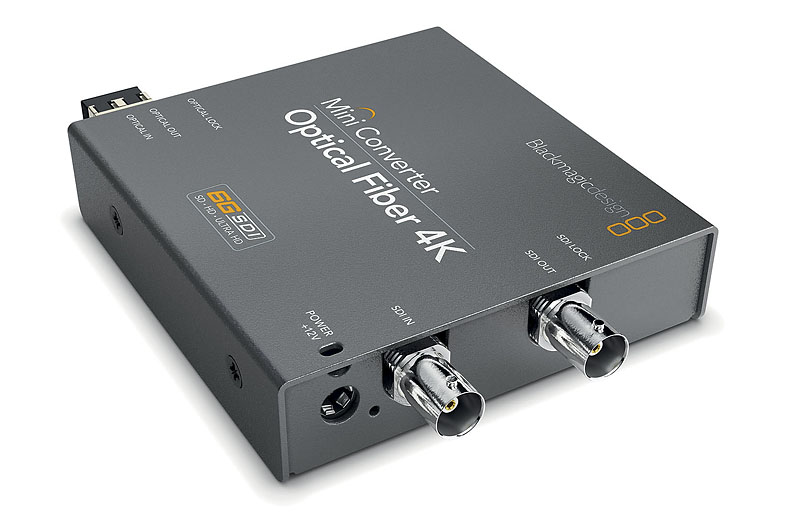

Blackmagic Design Mini Converter - Optical Fiber 4K
Miniatúrny konvertor z 6G-SDI na Optical Fiber a Optical Finer na 6G-SDI naraz s automatickým prepínaním medzi SD, HD a Ultra HD 4K video štandardom v každom smere nezávisle. viac
Mini Converter - Optical Fiber 4K
Teraz je možné konvertovať z 6G-SDI na Optical Fiber a z Optical Fiber na 6G-SDI naraz. Konveror automaticky prepína medzi SD, HD a Ultra HD 4K video šdandardami v každom smere plne nezávisle.
Vlastnosti:
- Jednoduché na ovládanie
- Kvalitné kovové prevedenie
- Miniatúrne rozmery
- Implementované najnovšie technológie
- Vysokokvalitné spracovávanie obrazu
- 6G-SDI technológia

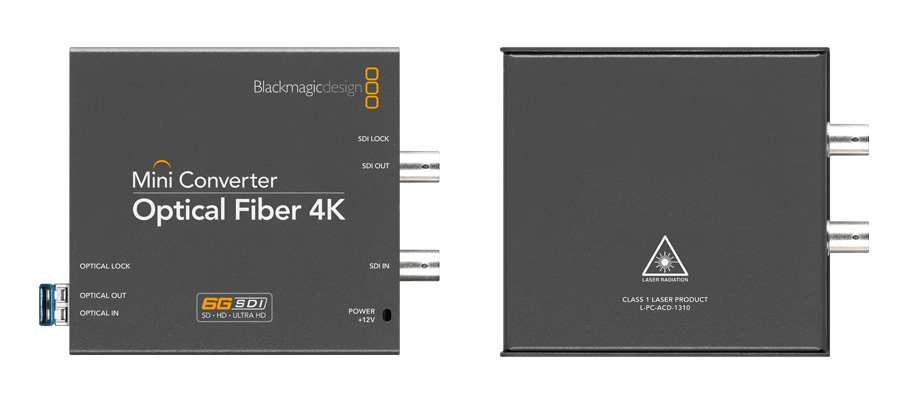

Pohľady:

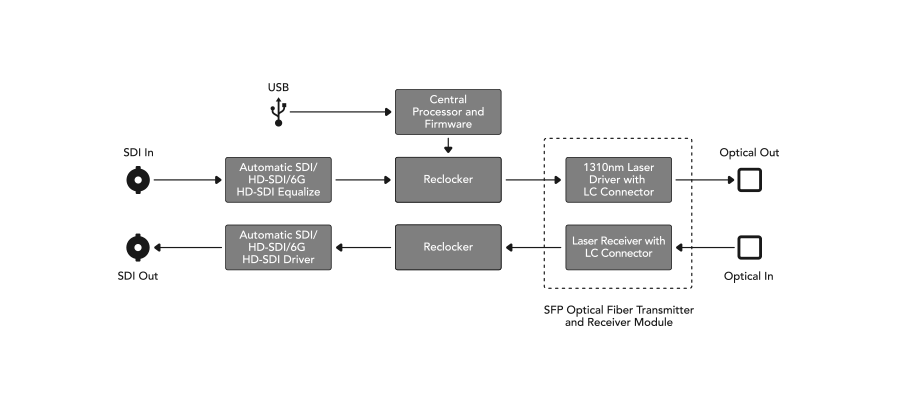

Schéma zapojenia:
|
Connections |
|
|
SDI Video Input |
Auto-switchable between SD, HD and 6G-SDI. |
|
SDI Video Output |
Automatically matches the SD, HD and 6G-SDI optical input. |
|
Analog Video |
None |
|
Analog Audio |
None |
|
AES/EBU Digital Audio |
None |
|
Optical Fiber Video Input |
1 x 10 bit SD/HD/6G-SDI switchable. |
|
Optical Fiber Video Output |
1 x 10 bit SD/HD/6G-SDI switchable. |
|
Optical Fiber Audio Input |
16 channel embedded. |
|
Optical Fiber Audio Output |
16 channel embedded. |
|
Multi Rate Support |
Auto detection of SD, HD or 6G-SDI. |
|
Updates and Configuration |
None |
|
Reclocking |
Yes |
|
Standards |
|
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI. |
|
SDI Video Rates |
SDI video connections are switchable between standard definition, high definition and 6G-SDI |
|
SDI Video Sampling |
4:2:2 and 4:4:4 |
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
|
SDI Color Precision |
4:2:2 and 4:4:4 |
|
SDI Color Space |
YUV and RGB |
|
SDI Auto Switching |
Automatically detects SD, HD or 6G-SDI. |
|
ASI Support |
Yes |
|
SD Format Support |
525/29.97 NTSC, 625/25 PAL |
|
HD Format Support |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 |
|
2K Format Support |
2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25 |
|
4K Format Support |
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24 |
|
Analog Format Support |
None |
|
Analog Color Space |
None |
|
Analog Color Precision |
None |
|
Extras |
|
|
Software Control |
None |
|
Internal Software Upgrade |
Via included updater application. |
|
Settings Control |
None |
|
Power Supply |
+12V universal power supply included with international socket adapters for all countries. Cable tie point. |
|
Power Consumption |
3.84 Watts |
|
Operational Voltage Range |
12V |
