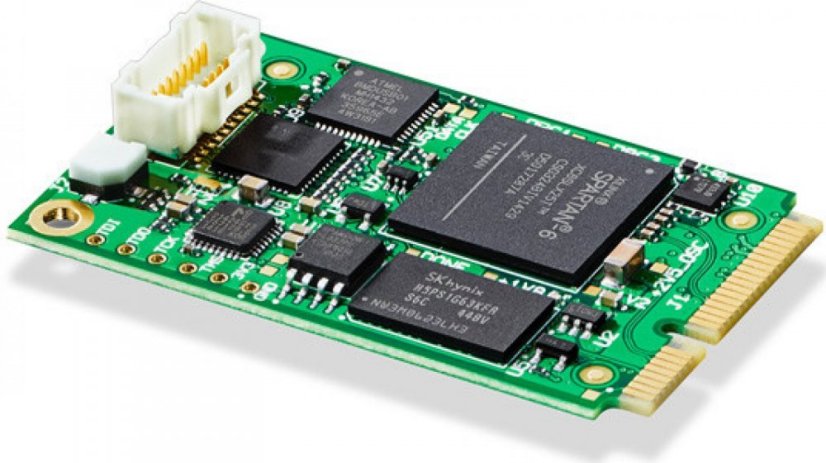

Blackmagic Design DeckLink Micro Recorder

169 € s DPH

Kód produktu

na sklade

10-bitová SD/HD karta s 3G-SDI vstupom na naberanie materiálu s low-profile veľkosťou pre montáž do serverov. viac

DeckLink Micro Recorder

Naberacia 10-bitová nekomprimovaná PCIe karta pre PC a Mac v low-profile prevedení pre montáž do video serverov. Obsahuje 3G-SDI vstup pre naberanie materiálu. DeckLink Micro Recorder podporuje všetky dostupné formáty a automaticky prepína medzi SD a HD formátom na vstupe. Vďaka tomu a aj jeho malým rozmerom je vhodný na vytvorenie ingest strojov na naberanie materialu s požiadavkami na malé rozmery.



  • 10-bitov, 4:2:2 na SDI
  • Široká podpora formátov s automatickým prepínanim
  • Malá PCIe karta - dodáva sa aj s krytom pre montáž do PCIe portu polovičnej výšky
  • Široká podpora aplikácií.

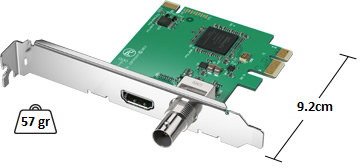

 Dimensions                                  Dimensions



SDI Video Input

1 x 10-bit SD/HD switchable

SDI Audio Input

16 Channels embedded in HD and 8 channels in SD.

Computer Interface

PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots.





Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.



Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 or Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.

Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation

PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systems require a Mac Pro computer. Please check the Support pages to see the full system requirements.

Software Applications

Apple Final Cut Pro X

Adobe Premiere Pro

Avid Media Composer

Adobe After Effects

Nuke - The Foundry

DaVinci Resolve

Avid Pro Tools

Steinberg Cubase

Steinberg Nuendo

Adobe Photoshop


Other supported applications include: Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster.

Video Standards


SD Format Support

625/25 PAL, 525/29.97 NTSC.

HD Format Support

720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.

SDI Compliance

SMPTE 259M and 292M.

SDI Metadata Support

VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning.

Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

Video Sampling


Color Precision


Color Space

REC 601, REC 709

Multiple Rate support

SDI is switchable between standard definitlon and high definition.



Colorspace Conversion

Hardware based real time.

HD Up Conversion

Software based up conversion during video capture.

Operating Systems

Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later.

Windows 7 or Windows 8.


Physical Specifications





Environmental Specifications


Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

DeckLink Micro Recorder

Software CD
