Blackmagic Design ATEM 2 M/E Production Studio 4K

100 bodov do vernostného systému

Dostupnosť

Produkt už nie je v ponuke V prípade ak ho má dodávateľ na sklade vieme dodať do 3-4 dní.

Výrobca

Kód produktu

SWATEMPSW2ME4K

Switcher možňujúci pripojenie až 20 SD, HD alebo UltraHD 4K kamier, diskových rekordérov, počítačov alebo iných video signálov pre prácu v plnej vysielacej kvalite. viac

Popis a špecifikácia

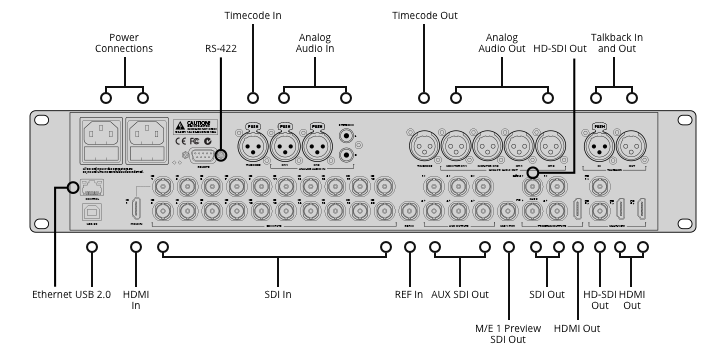

PRIPOJENIE:

Total Video Input
20

Total Video Output
13

SDI Video Input
20 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio

HDMI Video Input
1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio

Analog Audio Output
2 x XLR Program 2 x XLR Monitor

Extra Audio Outputs
1 x XLR Timecode and 1 x XLR Talkback

SDI Audio Output
2 Ch embedded into SDI output on all outputs.

Audio Input
2 x XLR. 2 x RCA.

Extra Audio Inputs
1 x XLR Timecode and 1 x XLR Talkback

Sync Input
Tri-Sync or Blackburst

Internal Frame Synchronizers
20. All inputs

SDI Program Output
3 x 10-bit SD/HD/Ultra HD 4K switchable.

HDMI Program Output
1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.

Down Converted SDI Program Output
1 x 10-bit (Ultra HD 4K to HD)

SDI Preview Output
1 x 10-bit SD/HD/Ultra HD 4K switchable

SDI Aux. Output
6 x 10-bit SD/HD/Ultra HD 4K switchable

Quantity of Multi Views
2 x SDI plus 2 x HDMI, able to be used concurrently.

Multi View Outputs
2 x SDI and 2 x HDMI.

Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)

Computer Interface
1 x USB 2.0 port

ATEM 2 M/E Production Switcher 4K

VIDEO ŠTANDARDY:

SD Format Support
625/25 PAL 4:3 and 16:9, 525/29.97 NTSC 4:3 and 16:9

HD Format Support
720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080i50, 1080p50, 1080i59.94, 1080p59.94.

Ultra HD 4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97.

SDI Compliance
SMPTE 259M, 292M

Video Sampling
4:2:2

Color Precision
10-bit

Color Space
REC 601, REC 709, REC 2020.

HDMI Input Resolutions for Computers
720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080 59.94Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz. Note: Also supported are; 24, 30 and 60 Hz inputs when switcher is in 23.98, 29.97 and 59.94 Hz formats respectively.

OPERAČNÝ SYSTÉM:

Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.
Windows 7 64-bit or Windows 8 32-bit or 64-bit.
