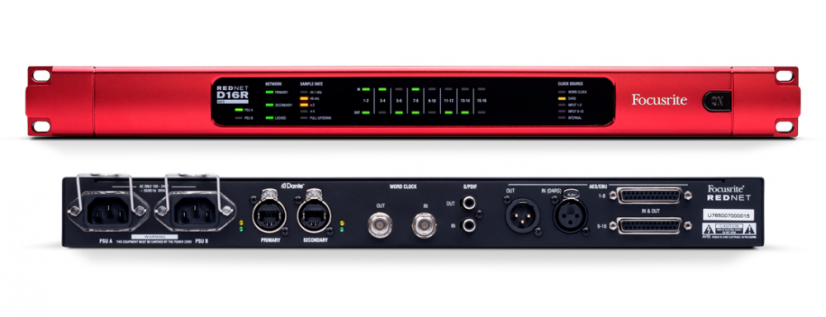

D16R - 16 x 16 AES3 kanálov pre Dante rozhranie
RedNet D16R je 1U 16x16 AES3 prevodník pre Dante sieť. Ponúka redundanciu pre sieť a napájanie. Je idaálny pre poskytnutie AES3 rozhrania pre Postprodukciu, Broadcast, Live akcie, alebo pre nahrávacie štúdio. Je vhodný ako medzičlánok medzi digitálnymi pultami, digitálnymi zosilňovačmi a pod. a Dante sieťou. D16R ponúka SR konverziu na pre každý pár čo umožňuje okamžité operácie s akýmkoľvek AES3 zdrojom.
4 DB25 konektory na zadnom paneli poskytujú 8 párov AES3 I/O. RCA konektory umožňujú prepoj s S/PDIF rozhraním. WordClock I/O umožňuje synchronizáciu pre externé zariadenia, príp. umožnia synchronizovať Dante sieť ak je D16R ako Grand Master. Napájanie a Dante rozhranie je redundantné, resp. pre Dante je možné sériové pripájanie.
Základné vlastnosti:
- 16x16 AES3 I/O pre Dante AoIP
- samplovacia frekvencia a konverzia až do 24-bit, 192kHz
- AES67 compliant
- Redundantné napájanie a redundantné sieťové rozhranie
- Flexibilné možnosti vstupu: DB25, XLR, RCA
- Word Clock I/O a DARS vstup
- AES3 I/O v AES59 štandarte na DB25 konektoroch
- Podrobná indikácia na prednom paneli
- Vzdialené ovládanie pomocou softvéru
INPUT SAMPLE RATE CONVERTORS
- Sample Rate Range .... 32 to 216 kHz
- Gain Error .... -0.3dB
- Dynamic Range .... > 138dB (-60 dBFS method)
- THD N .... < -130dB (0.00003); 0 dBFS input
- Latency .... 11 to 45 samples (network and input sample rate dependent).
DIGITAL PERFORMANCE
- Supported Sample Rates .... 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
- Clock Sources .... Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master
REAR PANEL CONNECTIVITY
- Channel Count .... 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)
- Input And Output .... 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
- Alternate Input (Optional DARS) .... 1 x Female XLR (replaces DB-25 channels 1-2)
- Alternate Output .... 1 x Male XLR (duplicates DB-25 channels 1-2)
- Input .... 1 x RCA phono socket (replaces DB-25 channels 3-4)
- Output .... 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)
- PSU .... 2 x IEC Inputs with retaining clips
- Network .... 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
- AES/EBU Channel Count .... 16 x 16 AES/EBU channels
FRONT PANEL INDICATORS
- Primary PSU (A) .... Green LED. Illuminates when an AC input is applied and all DC outputs are present.
- Secondary PSU (B) .... Green LED. Illuminates when an AC input is applied and all DC outputs are present.
- Sample Rate .... Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
- Pull Up/Down .... Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.
- Signal Indicators .... 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
- Secondary Network .... Green LED. Indicates that a network connection is present on secondary port when in redundant mode
- Network Locked .... Green LED. When unit is network slave, shows valid network lock
- Clock Source .... Orange LED for each: Internal, Word Clock, DARS, Input 1–2 and Input 9–10
NETWORK MODES
- Redundant .... Allows unit to connect to two independent networks
- Switched .... Connects both ports to integrated network switch allowing daisy-chaining
DIMENSIONS
- Height .... 44.5mm/ 1.75"
- Width .... 482.6mm/ 19"
- Depth .... 263mm/ 10.35"
WEIGHT
- Weight .... 3.84kg
POWER
- Power PSU .... 2 x Internal, 100-240V, 50/60Hz, consumption 30VA
HEAT PERFORMANCE
- Operating Temperature .... Operates at up to an ambient temperature of 50 degrees Celcius
