Blackmagic Design UltraStudio 4K Extreme 3

-1%
73 bodů do věrnostního systému

Cena
92 250 Kč s DPH

Běžná cena
93 510 Kč s DPH

Ušetříte
1% (1 260 Kč)


Kód produktu
BDLKULSR4KEXTR3

na ext. skladu - V případě pokud jej má dodavatel skladem umíme dodat do 3-4 dnů.
ks

Externý prevodník s Thunderbolt rozhraním pre SD, HD, Ultra HD, DCI 4K a 3D, framerate až do 60p. Podporuje vzorkovanie RGB 4:4:4 a disponuje 12G-SDI a HDMI 2.0 vstupmi a výstupmi. Obsahuje analógový video vstup a výstup, timecode, analógove XLR a AES/EBU audio a vstavaný enkóder pre H.256 a ProRes. Více

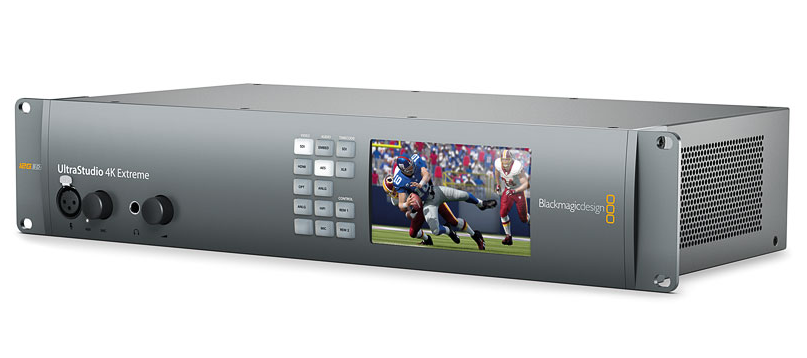

UltraStudio 4K Extreme

UltraStudio 4K je thunderbolt break out box montovateľný do racku pre nahrávanie a prehrávanie s najnovšiou a najvýkonnejšiou technológiou vrátane 4:4:4, dual channel 3D a Ultra HD 4K. Toto zariadenie je Vaše riešenie pre náročnú a vysoko kvalitnú prácu. Obsahuje najnovšie 12G-SDI, HDMI 2.0, analógové video, time code, ako aj AES/EBU - balanced a unbalanced analógové vstupy a výstupy.

Vlastnosti:

  • Lepšie pracovné postupy
  • Kvalitné prevedenie konektorov
  • Vysoká rýchlosť vďaka Thunderbolt pripojeniu
  • Vysoká kvalita obrazu (10bit 4:4:4)
  • Atraktívny design
  • Možnosť uchytenia do racku
  • Kontrolný monitor na prednom panely
  • Široká podpora programov

Connections



SDI Video Input

2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Video Loop

4 x reclocked SD/HD/2K/4K linked to corresponding inputs.

SDI Video Output

2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Video Repeated Output

 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.


Optical Fiber Input/Output

 2 x 12Gb/s Optical Fiber (Optional).

Analog Video Input

1 x Component YUV on 3 BNCs

1 x composite NTSC/PAL on 1 BNC

Analog Video Output

1 x Component YUV on 3 BNCs

1 x composite NTSC/PAL on 1 BNC

HDMI Video Input

HDMI 2.0 type A connector with support for 2160p60

HDMI Video Output

HDMI 2.0 type A connector with support for 2160p60

Analog Audio Input

4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.

Analog Audio Output

4 Channels of professional balanced analog audio via XLR connectors.

AES/EBU Audio Input

2 Channels unbalanced with sample rate converter on BNC connector.

AES/EBU Audio Output

2 Channels unbalanced on BNC connector.

SDI Audio Input

16 Channels embedded in SD/HD/2K/4K.

SDI Audio Output

16 Channels embedded in SD/HD/2K/4K..

HDMI Audio Input

8 Channels embedded in SD/HD/4K.

HDMI Audio Output

8 Channels embedded in SD/HD/4K.

Mic Input

 1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.

Timecode Input

1 x XLR Input.

Timecode Output

1 x XLR Output.

Sync Input

1 x Reference input. Blackburst in SD or Tri-Sync in HD.

Sync Output

 1 x Reference Loop Output. Blackburst in SD or Tri-Sync in HD.

Device Control

2 x Sony™ compatible RS-422 deck control ports. Serial ports TxRx direction reversible under software control.

Computer Interface

Thunderbolt™ 2, PCI Express, USB.



Codecs



Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software



Software

Software Included

Resolve Lite, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X. Resolve Lite, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Windows 7 and Windows 8. Blackmagic Desktop Video Utility and Blackmagic driver on Linux

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Software Applications

Apple Final Cut Pro X

Adobe Premiere Pro

Avid Media Composer

Adobe After Effects

Nuke - The Foundry

DaVinci Resolve

Avid Pro Tools

Steinberg Cubase

Steinberg Nuendo

Adobe Photoshop

Other supported applications include: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

SDI Video
Standards



SD Format Support

525/29.97 NTSC, 625/25 PAL.

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2K Format Support

 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.

SDI Compliance

SMPTE 292MSMPTE 259MSMPTE 296MSMPTE 372MSMPTE 425M level ASMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601.

SDI Metadata Support

VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.

Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

Video Sampling

4:2:2, 4:4:4 and 4:4:4:4.

Color Precision

8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4.

Color Space

REC 601, REC 709

HDMI Video
Standards



SD Format Support

 525/29.97 NTSC, 625/25 PAL.


HD Format Support

 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.


4K Format Support

 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24

SDI Configuration

 SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD.

HDMI Video Sampling

4:2:2 and 4:4:4.

HDMI Color Precision

10-bit RGB in HD, 10-bit YUV in 4K.

HDMI Configuration

 HDMI 2.0 supports Deep Color and automatically configures to connected display.

Multiple Rate support

HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing



Encoding

 Hardware based real time h.265 encoder.

Colorspace Conversion

Hardware based real time.

3D Processing

Dual stream and frame packed capture & playback.

Ultra HD Down Conversion

Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Component and NTSC/PAL. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3.

HD Up Conversion

Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.

HD Cross Conversion

Built in, high quality hardware cross conversion from 720p to 1080i and 1080i to 720p on playback.

Real Time Effects

DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

Physical Installation

Requires computer with either a Thunderbolt port or available PCIe slot. PCIe cable and interface card available separately. Please check support pages to see the full system requirement.





Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.





Power Requirements

2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.





Physical Specifications





Environmental Specifications



Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing





What's Included

UltraStudio 4K Extreme

Software SD card

Resolve Lite SD card
